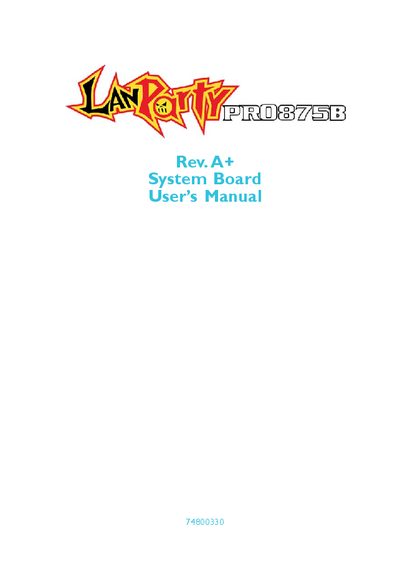

This document introduces the basic functions and usage of the Rev. A+ system board, mainly including the system board hardware configuration, installation instructions, usage instructions and troubleshooting
This manual covers safety precautions, hardware layout, BIOS setup, driver installation, and system utilities for the LANPaty PRO875B motherboard. It includes detailed sections on processor support, memory configuration, AGP and PCI slot usage, and power‑on troubleshooting.
Additional information such as FCC compliance, battery handling, and recommended driver installation order is provided, along with appendices for Hyper‑Threading, CPU fan protection, temperature protection, error messages, and a troubleshooting checklist.
| Chipset | Intel® 875P |
|---|---|
| Memory Controller Hub | Intel® 82875P |
| I/O Controller Hub | Intel® 82801ER ICH5R |
| CPU Socket | Socket 478 |
| Maximum System Memory | 4 GB |
| Memory Types Supported | DDR266, DDR333, DDR400 (ECC/non‑ECC, unbuffered) |
| AGP Support | AGP 3.0 (4x and 8x) |
| PCI Slots | 5 |
Use only the same or equivalent type recommended by the manufacturer and dispose of used batteries according to the manufacturer's instructions.
Set the "RAID Device Control" field in the Genie BIOS Setting submenu of the Award BIOS to Disabled.
