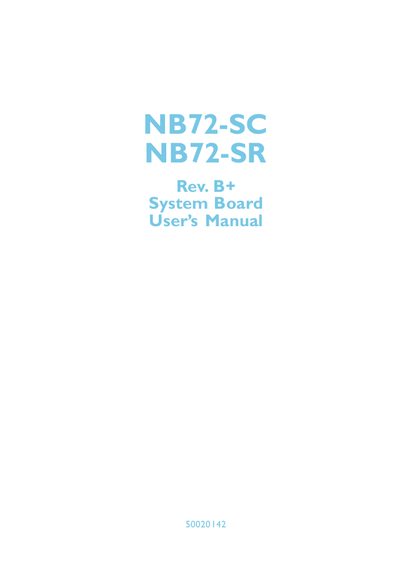

This manual provides detailed information for the NB72-SC and NB72-SR system boards, including safety precautions, hardware layout, jumper settings, BIOS configuration, and driver installation. It also contains troubleshooting steps and a checklist for proper system assembly.
The document describes the board’s chipset, supported CPU, memory types, expansion slots, and peripheral connectors, helping users configure and maintain the system correctly.
| CPU Socket | Socket 478 for Pentium® 4 processor |
|---|---|
| Chipset | Intel® 845 chipset |
| Memory Slots | Three 168‑pin PC SDRAM DIMM sockets, up to 3 GB |
| AGP Slot | 1.5 V AGP 4× (1066 MB/s) slot |
| PCI Slots | Four dedicated PCI slots and one shared PCI/CNR slot |
| USB Ports | Two USB ports |
| Serial Ports | Two DB‑9 serial ports (NSI6C550A compatible) |
| Parallel Port | One SPP/ECP/EPP DB‑25 parallel port |
| PS/2 Ports | One mouse and one keyboard mini‑DIN‑6 ports |
| Audio Jacks | Three audio jacks: line‑out, line‑in, mic‑in |
It supports a Pentium® 4 processor using a Socket 478 socket.
The board has three DIMM sockets and can support up to 3 GB of system memory.
It includes one AGP 1.5 V 4× slot, four dedicated PCI slots, and one shared PCI/CNR slot.
