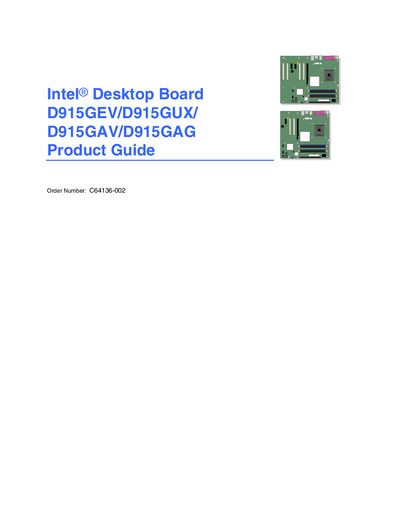

Intel® Desktop Board D915GEV/D915GUX/ D915GAV/D915GAG Product Guide is a document from Intel that provides information about the Intel® Desktop Board D915GEV/D915GUX/ D915GAV/D915GAG product.
This guide describes the Intel D915GEV/D915GUX/D915GAV/D915GAG desktop board, its features, supported components, and how to install and configure the board in a host system. It is intended for technically qualified personnel who need detailed instructions for assembly, BIOS configuration, and optional Trusted Platform Module setup.
The document is organized into sections covering board features, component installation, BIOS update procedures, TPM configuration, board resources such as connectors and pin‑outs, and regulatory compliance information including safety and EMC requirements.
| Form Factor | ATX and MicroATX |
|---|---|
| Processor Support | Intel® Pentium® 4 LGA775 |
| Memory Slots | Four 184‑pin DDR (D915GAV/D915GAG) or four 240‑pin DDR2 (D915GEV/D915GUX) |
| Maximum Memory | Up to 4 GB |
| Chipset | Intel® 915G Express |
| USB 2.0 Ports | Up to eight |
| SATA Channels | Four |
The board supports Intel® Pentium® 4 processors in the LGA775 package.
The board provides up to eight USB 2.0 ports.
D915GAV/D915GAG use four 184‑pin DDR DIMM sockets, while D915GEV/D915GUX use four 240‑pin DDR2 DIMM sockets; both support up to 4 GB of memory.
