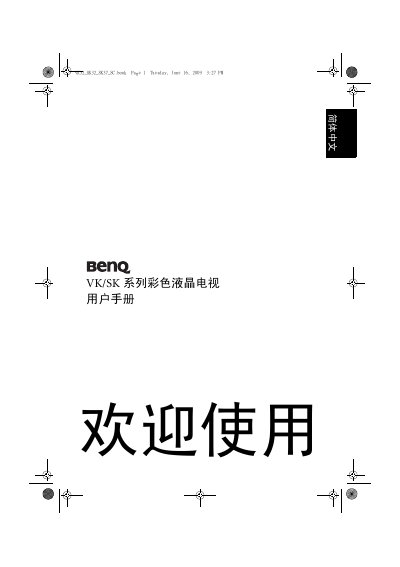

This manual introduces the basic use of BenQ VK/SK series color LCD TV, including TV connection, setting and operation.
This manual covers everything needed to install and safely use the BenQ VK/SK series LCD television. It includes guidance on selecting and preparing the installation location, mounting options, power connections, and cleaning procedures.
The guide also explains how to operate the TV, use the remote control, adjust picture and sound settings, connect various audio/video sources, and troubleshoot common problems. Detailed specifications and supported input resolutions are listed in the final sections. This manual is written in Chinese.
| Screen size | 31.5" (VK) / 37" (SK) |
|---|---|
| Native resolution | 1366×768 (VK) / 1920×1080 (SK) |
| Brightness | 450 cd/m² (VK) / 500 cd/m² (SK) |
| Contrast ratio | 3000:1 (VK) / 5000:1 (SK) |
| Power consumption | 120 W (typical) / 130 W (max) |
Turn off the TV and disconnect power, then gently wipe the screen with a slightly damp, lint‑free soft cloth. Do not use oil, liquid, or spray cleaners.
Set the PC output to 1360×768 @ 60 Hz for VK models; for SK models use 1920×1080 @ 60 Hz to obtain the best image quality.
