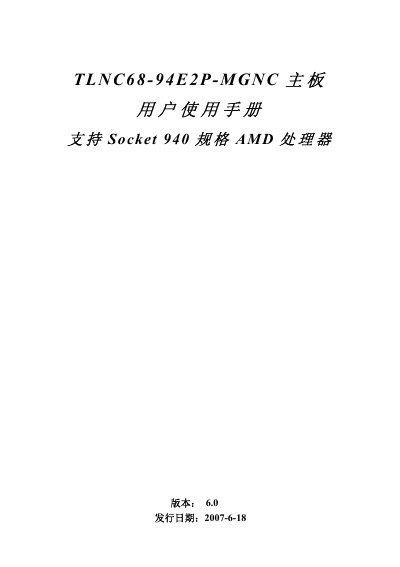

This user manual introduces the TLNC68-94E2P-MGNC motherboard user manual, which supports Socket 940 specification AMD processors. The manual includes the introduction of the motherboard, diagrams and I/O interfaces, installation and settings of the motherboard, etc.
This guide provides an overview of the TLNC68-94E2P-MGNC motherboard, including its MATX form factor (243.8 mm × 189.2 mm), AMD Socket 940 CPU support, and a range of I/O interfaces such as DDR2 memory slots, SATA, USB, and LAN. It also lists the included accessories and warranty information.
Detailed installation instructions cover mounting the motherboard in a chassis, connecting the CPU, memory modules, storage devices, and peripheral connectors. The manual includes diagrams for the layout of PCI/PCI‑Express slots, power connectors, and front‑panel headers, as well as troubleshooting tips for common setup issues. This manual is written in Chinese.
| Form factor | MATX (243.8 mm × 189.2 mm) |
|---|---|
| CPU socket | AMD Socket 940 |
| Memory slots | 2 × 240‑pin DDR2 slots |
| Supported DDR2 speeds | 400 MHz, 533 MHz, 667 MHz, 800 MHz |
| IDE channels | 1 × IDE |
| Serial ATA ports | 4 × SATA |
| PCI‑Express slots | 1 × PCI‑Express x16 |
| LAN interface | 10/100/1000 Mbps Ethernet |
| USB ports | Multiple USB 2.0 connectors |
| Audio | 8‑channel HD audio |
It uses the AMD Socket 940 CPU socket.
The board provides two 240‑pin DDR2 memory slots.
The motherboard supports one IDE channel and four Serial ATA ports.
Yes, it includes a LAN interface that supports 10/100/1000 Mbps speeds.
