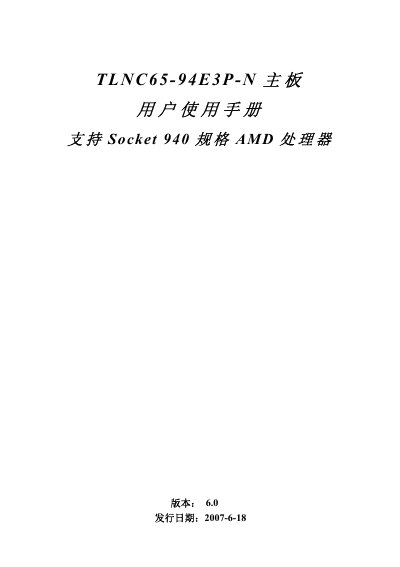

TLNC65-94E3P-N motherboard user manual, covering packaging instructions, system motherboard introduction, motherboard map and I/O interface, motherboard installation and setup, etc.
The manual begins with packaging verification and an overview of the TLNC65-94E3P-N motherboard, describing its ATX form factor and supported components. It then details the board layout, including CPU socket, memory slots, storage interfaces, and peripheral connectors.
Subsequent sections cover step‑by‑step installation of the CPU, memory, and expansion cards, as well as configuration of BIOS features and driver installation. A component list with pin assignments is provided for reference. This manual is written in Chinese.
| Form Factor | ATX (305 mm × 185 mm) |
|---|---|
| CPU Socket | Socket 940 |
| Memory Slots | 4 × 240‑pin DDR2 DIMM |
| Supported DDR2 Speeds | 800 MHz / 667 MHz / 533 MHz / 400 MHz |
| IDE Interface | 1 × IDE channel |
| Serial ATA Ports | 2 × SATA + 1 × eSATA |
| LAN | 10/100/1000 Mbps Ethernet |
It uses a Socket 940 compatible with AMD processors.
The board provides four 240‑pin DDR2 DIMM slots.
