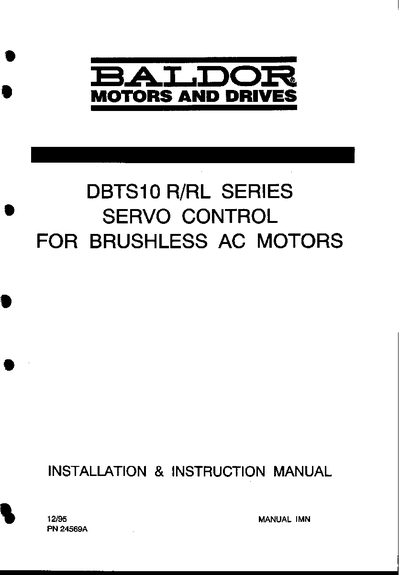

Baldor DBTS10 R/RL Servo Control Installation & Instruction Manual

About this manual

This manual provides detailed installation recommendations, wiring diagrams, and configuration steps for the DBTS10 R/RL servo controller used with brushless AC motors. It covers mechanical mounting, power supply connections, encoder and resolver wiring, and optional serial interfaces.

Technical specifications, safety declarations, and troubleshooting information are included to help users set up and maintain the system in industrial machine applications.

What's inside

• Specification
• Usage Definitions
• Identification
• Features
• Declaration of Conformity
• Technical Data
• Installation Recommendations
• Hardware Description
• Power Supply BPS10R
• System Setup

Specifications

Frequently asked questions

What is the nominal output power range?

The unit can deliver from 0.7 kVA up to 6.0 kVA.

What output frequency can be set?

The output frequency is adjustable between 0 Hz and 300 Hz.
