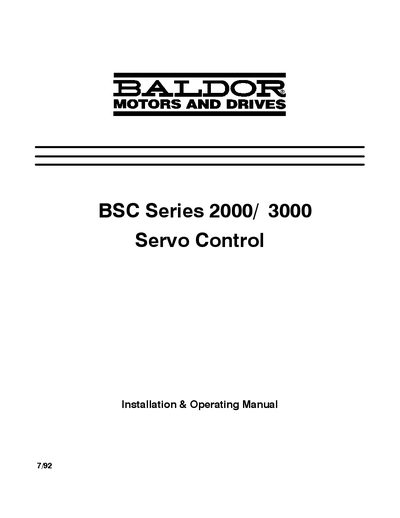

This document is the installation and operating manual for BSC Series 2000/3000 Servo Control, which provides specifications, features, installation recommendations, interconnection diagram, etc.
This manual provides detailed instructions for installing and operating the Balldor BSC2000/3000 servo control units. It includes safety information, compliance declarations, and general recommendations for mechanical and electrical installation.
Key sections cover product specifications, wiring diagrams, EMC installation instructions, mechanical mounting, system set‑up procedures, I/O hardware description, and test signal generation. The document also lists required components such as mains filters, connection cables, and cable glands, and provides technical data for power, input, and velocity control sections.
| Nominal DC‑Bus Voltage (230 V) | 230 V |
|---|---|
| Nominal DC‑Bus Voltage (400 V) | 400 V |
| Output Current Versions | 15 A, 25 A, 35 A, 45 A |
| Nominal Phase Current | 15 A – 45 A |
| Nominal Output Power | 6.5 kVA – 30.3 kVA |
| Efficiency | > 95 % |
| Input Voltage Range (24 VDC) | 20 V – 29 V |
| Input Current @ 28 VDC | 1.6 A |
| Protection Class | IP20 |
| Weight | 8.5 kg – 9.5 kg |
The BSC2000/3000 offers four output current versions: 15 A, 25 A, 35 A, and 45 A.
The 24 VDC input accepts a voltage range from 20 V to 29 V.
The amplifiers are rated at protection class IP20.
