ML1XX26 is a high-power, high-efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 658nm and standard pulse light output of 300mW. ML1XX26 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance. Also, ML1XX26 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation at 75 °C.

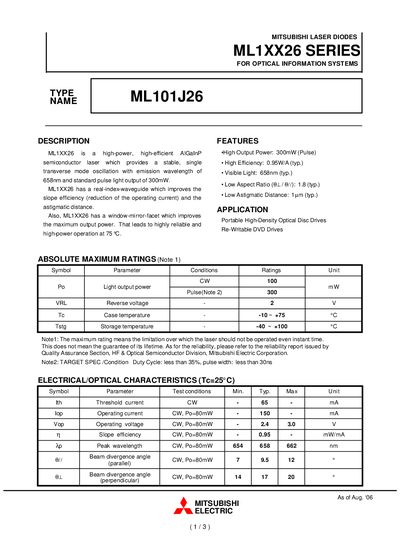

The ML101J26 is a high‑efficiency AlGaInP semiconductor laser diode designed for optical information systems. It provides a stable single‑transverse‑mode oscillation with a typical emission wavelength of 658 nm and a pulse output of 300 mW.
Key features include a real‑index waveguide for improved slope efficiency, a window‑mirror facet for higher output power, and reliable operation up to 75 °C. The datasheet lists absolute maximum ratings, electrical and optical characteristics, and outlines safety‑design considerations for integration into optical disc drives and other high‑density applications.
| Pulse Output Power | 300 mW |
|---|---|
| Typical Emission Wavelength | 658 nm |
| Threshold Current (Ith) | 65 mA |
| Slope Efficiency | 0.95 W/A |
| Operating Voltage (Vop) at 80 mW | 3.0 V |
| Beam Divergence Angle (parallel) | 7°‑12° |
The maximum pulse output power is 300 mW.
It emits visible light at a typical wavelength of 658 nm.
The duty cycle should be less than 35 % with pulse width under 30 ns.
Yes, it is rated for reliable operation up to 75 °C.
