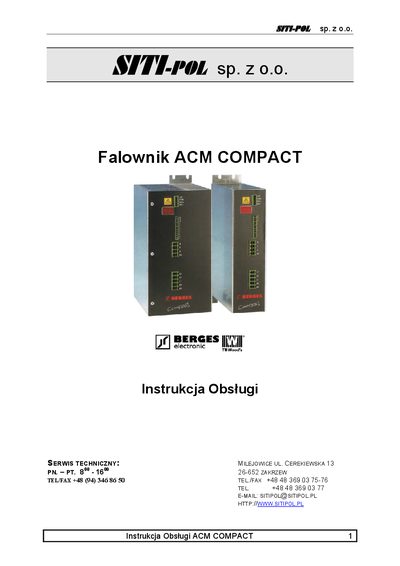

ACM COMPACT is an AC servo drive
The ACM COMPACT inverter service manual provides comprehensive safety instructions, installation guidelines, wiring connections and operational procedures. It emphasizes the need for qualified personnel, proper grounding, and compliance with IEC and EN standards before any work is performed.
The document also details technical characteristics, programming levels, accessory options and diagnostic messages. Users can find step‑by‑step instructions for mounting, configuring parameters, and handling fault conditions, as well as contact information for technical support. This manual is written in Polish.
| Input voltage (single phase) | 220‑240 V |
|---|---|
| Input voltage (three phase) | 380‑460 V |
| Power rating range 1 | 0.37 kW – 5.5 kW |
| Power rating range 2 | 7.5 kW – 22 kW |
| Power rating range 3 | 30 kW – 37 kW |
