The ALI S-A1 plasma display screen features high-density display, HD Ready, and long lifespan. It uses ALI S-A1 screen and FC5 HD core for image processing, with dynamic contrast and noise reduction functions. It supports DVI-D input and comes with a rotating base.

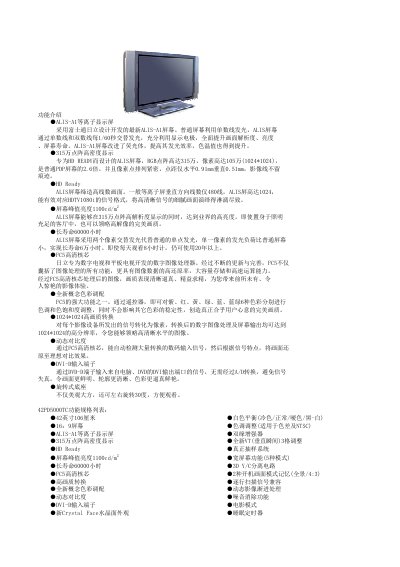

This manual introduces the ALIS‑A1 plasma display screen designed by Fujitsu‑Hitachi for Philips. It explains the high‑density 315万点阵 display, 1024×1024 resolution, 1100 cd/m² peak brightness, and 60 000 hour lifetime achieved through alternating pixel illumination.
Key sections cover video input options such as DVI‑D, audio output of 12 W × 2, rotating base with 30° swivel, multi‑language on‑screen menus, power specifications, dimensions, and mounting accessories. The document also lists detailed specifications and usage tips for optimal picture quality. This manual is written in Chinese.
| Screen size | 42 inches (106 cm) |
|---|---|
| Resolution | 1024 × 1024 (315万点阵) |
| Peak brightness | 1100 cd/m² |
| Lifetime | 60 000 hours |
| Pixel pitch | Horizontal 0.90 mm, Vertical 0.51 mm |
| Color depth | 16.77 million colors |
| Viewing angle | >160° horizontal |
| Rated power | 365 W |
| Standby power | <3 W |
| Audio output | 12 W × 2 |
| Weight | 34.9 kg |
| Dimensions (W×H×D) | 1030 mm × 636 mm × 91 mm |
The screen reaches a peak brightness of 1100 cd/m².
The display is rated for a lifetime of 60 000 hours.
It includes a DVI‑D input terminal for direct digital video connection.
Yes, the screen has a rotating base that can swivel up to 30 degrees.
