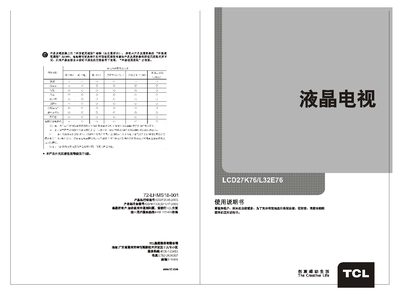

The TCL L32E76 is a high‑resolution LCD television designed for home and commercial use. This user manual explains the product’s features, safety precautions, and how to set up and operate the TV.
Key sections include safety warnings, a detailed installation and connection guide, operation instructions for TV and computer modes, a troubleshooting chapter, and a full specification table. Follow the guidance to ensure proper use, maintenance, and optimal performance. This manual is written in Chinese.
| Model | L32E76 |
|---|---|
| Working voltage | 220V‑50Hz |
| Rated power consumption | 120 W |
| Screen diagonal | 79 cm |
| Weight (with base) | ≈ 18 kg |
| Operating temperature | 5 °C – 35 °C |
| Storage temperature | -15 °C – 40 °C |
| Reception frequency | 470 MHz |
| Supported TV standards | PAL, NTSC |
| Audio output power | BW48 W |
Use a dry, soft‑bristle cloth or a liquid‑crystal‑specific cleaning agent, and avoid pressing hard or using water or chemicals.
Check that the antenna is properly positioned, ensure the power switch is on, verify all cable connections, and adjust the antenna direction as needed.
Replace the remote’s batteries and make sure the remote is pointed at the TV; if the problem persists, verify that the TV’s power is on and the infrared sensor is not obstructed.
