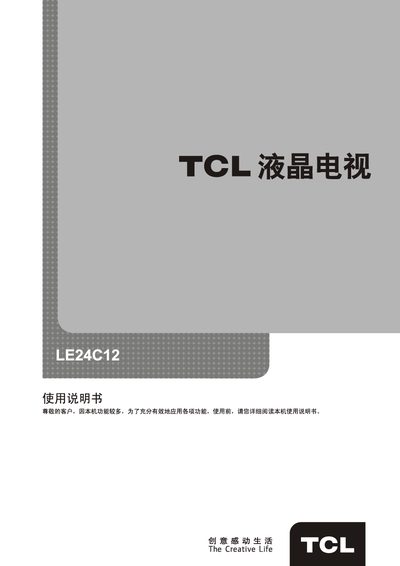

This manual introduces the TCL LE24C12 LCD television, covering safety precautions, included accessories, and the main functions such as multi‑language menus, sleep timer, and HDMI/VGA inputs. Detailed diagrams show the front panel layout and connection ports for antenna, HDMI, USB, VGA, component video, and audio.
Installation steps explain how to connect the antenna, HDMI devices, computers, and external video sources. The technical specifications list power consumption, audio output, screen size, dimensions, and operating voltage. A troubleshooting section helps resolve common issues like no picture, no sound, or remote‑control problems. This manual is written in Chinese.
| Audio output power | 3W + 3W (left + right) |
|---|---|
| Rated power consumption | 48 W |
| Screen diagonal size | 60 cm |
| Operating voltage | 220 V ~ 50 Hz |
| Main unit dimensions (W×H×D) | 573 mm × 80 mm × 410 mm |
| Main unit weight (with base) | ≈ 6.5 kg |
| Antenna reception frequency | 470 MHz (all channels) |
