PC-220 is a PC Card 2-port USB 2.0 / 2-port IEEE 1394 host interface controller that represents the perfect way to add four high speed ports (two USB 2.0 / two 1394) to standard notebook computers. The USB and 1394 peripherals can be used simultaneously. Installation is quick and easy, simply slide the PC-220 into your notebook’s Type II CardBus slot, and you’re ready to enjoy the convenience, speed, and reliability of today’s modern bus technology. The PC-220 offers the advantages of high-speed data throughput, (480Mbps for USB 2.0; 400 Mbps for 1394); the ability to daisy chain numerous peripheral devices; Plug and Play; hot-swapping and the latest PC Cardbus energy specifications. In addition, the PC-220 is backward compatible to USB 1.1 and can be installed in USB 1.1 systems.

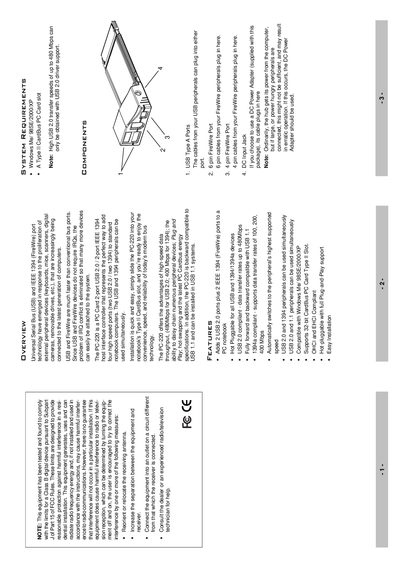

The PC-220 is a PC Card that adds two USB 2.0 ports and two IEEE 1394 (FireWire) ports to a notebook computer. It supports hot‑plugging, Plug‑and‑Play, and works with Windows Me, 98SE, 2000 and XP. The manual provides an overview of the technology, installation steps, operation instructions, and technical specifications.
Installation requires loading the driver from the supplied CD before inserting the card, followed by a system restart. Operation includes connecting optional DC power, inserting the card into a Type II CardBus slot, and attaching USB or FireWire peripherals. The document also lists environmental limits, dimensions, weight, and warranty information.
| USB Ports | 2 USB 2.0 Type‑A |
|---|---|
| FireWire Ports | 1 × 6‑pin, 1 × 4‑pin |
| USB Transfer Rate | 1.5 / 12 / 480 Mbps |
| IEEE 1394 Transfer Rate | 100 / 200 / 400 Mbps |
| Power Input | DC Jack 5 V, 2.6 A |
| Dimensions (L × W × H) | 115.5 × 54 × 13.8 mm |
| Weight | 50 g |
| Operating Temperature | 5 ~ 40 °C |
The PC-220 works with Windows Me, Windows 98SE, Windows 2000, and Windows XP.
Use the optional DC power adapter that supplies 5 V at up to 2.6 A and connect it to the DC input jack before inserting the card.
