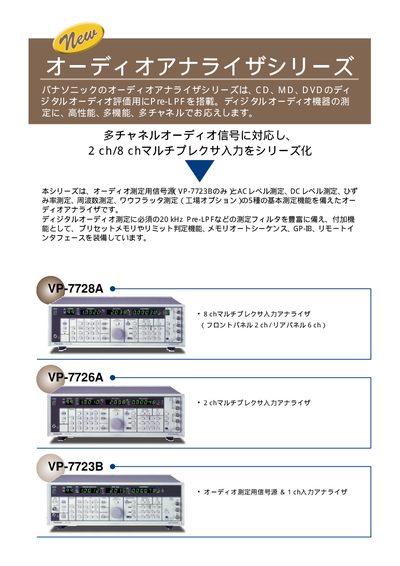

This document introduces Panasonic's audio analyzer series, including VP-7728A, VP-7723B, and VP-7726A. These audio analyzers feature high performance, versatility, and multi-channel capabilities, making them ideal for evaluating and measuring digital audio devices such as CD, MD, and DVD. They are equipped with a pre-low pass filter (Pre-L PF) and basic measurement functions such as AC level measurement, DC level measurement, harmonic distortion measurement, frequency measurement, and Wow & Flutter measurement. In addition, they have a wide range of measurement filters and additional features, such as preset memory, limit determination, auto sequence, GP-IB, and remote interface.
The Panasonic audio analyzer series (VP-7728A, VP-7726A, VP-7723B) offers five basic measurement functions such as AC level, DC level, THD+N, frequency and optional wow‑flutter. It supports a wide frequency range, high‑output signal source, and multiple channels for comprehensive digital audio evaluation.
The units include extensive interfaces (GP‑IB, remote control, 8‑channel multiplexed input), memory functions with up to 100 points, optional filters, and detailed specifications for signal levels, output, and environmental limits. This manual is written in Japanese.
| Frequency range | 5 Hz to 110 kHz |
|---|---|
| Input signal level range | 0.1 V to 100 V rms / 1 to 8.16 mV |
| AC level measurement range | 0.316 mV – 1000 V |
| Number of channel inputs | 8‑channel multiplexed (2 front, 6 rear) |
| Output level range | 14.0 dBV – 85.9 dBV |
| Power supply | 100 W 120 W 220 V 230 V, 50/60 Hz |
| Dimensions / weight | 400 mm × ?, approx. 18 kg |
| Memory capacity | 100‑point memory, 10 groups |
It measures from 5 Hz up to 110 kHz.
The analyzer provides an 8‑channel multiplexed input (2 front‑panel and 6 rear‑panel channels).
The AC level can be measured from 0.316 mV up to 1000 V.
