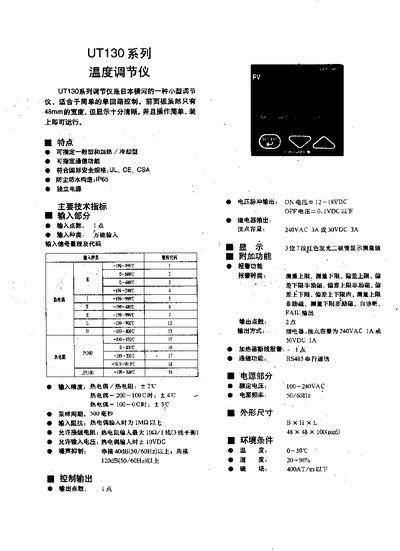

The UT130 series temperature regulator is a compact controller from Yokogawa designed for simple single‑loop control. It features a 48 mm wide front panel with a clear display, built‑in safety certifications, and IP65 dust‑proof and waterproof construction.
The manual provides technical specifications, input and output wiring diagrams, optional communication via RS485, and details on additional functions such as alarm and heater‑break detection. This manual is written in Chinese.
| Safety certifications | UL, CE, CSA |
|---|---|
| Ingress protection | IP65 |
| Number of input points | 1 |
| Input type | Universal input |
| Input accuracy (thermocouple / RTD) | ±2 °C |
| Sampling period | 500 ms |
| Allowed input voltage (thermocouple) | ≤10 VDC |
| Number of output points | 1 |
| Output types | Voltage pulse output, relay output |
| ON voltage | 12 ~ 18 VDC |
| OFF voltage | ≤0.1 VDC |
| Power supply voltage | 100 ~ 240 VAC |
| Power frequency | 50/60 Hz |
It complies with UL, CE, and CSA safety standards.
The device is rated IP65 for dust and water protection.
Yes, it includes an RS485 serial communication interface.
