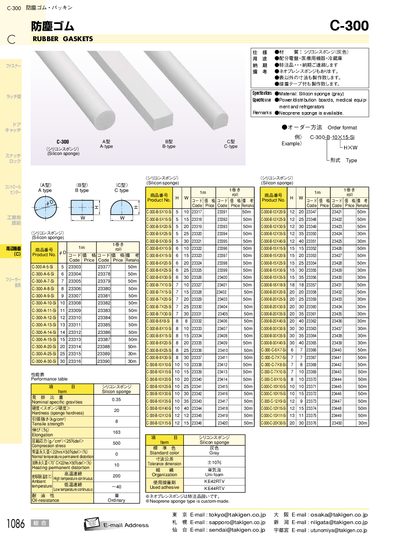

This document describes the features and applications of C-300防塵ゴム・パッキン. It is made of gray silicon sponge and is suitable for power/distribution boards, medical equipment, and refrigerators.
The C-300 series rubber gaskets from Takigen are designed for use in power and distribution boards, medical equipment and refrigerators. The document provides material details, performance specifications and a full order format for the various sizes.
Key specifications include silicon sponge (gray) construction, optional neoprene sponge, nominal specific gravity of 0.35, elongation of 163 %, high temperature continuous rating of 200 °C and low temperature continuous rating of 40 °C. An extensive table lists part numbers, dimensions and pricing for each gasket size.
| Material | Silicon sponge (gray) |
|---|---|
| Alternative Material | Neoprene sponge available |
| Nominal Specific Gravity | 0.35 |
| Elongation | 163 % |
| High Temperature Continuous | 200 °C |
| Low Temperature Continuous | 40 °C |
The C-300 gasket is made of silicon sponge (gray), and a neoprene sponge version is also available.
It can operate continuously up to 200 °C at high temperature and down to 40 °C at low temperature.
Use the order format table that lists part numbers such as C-300-B-5X10-Si with size and price information.
