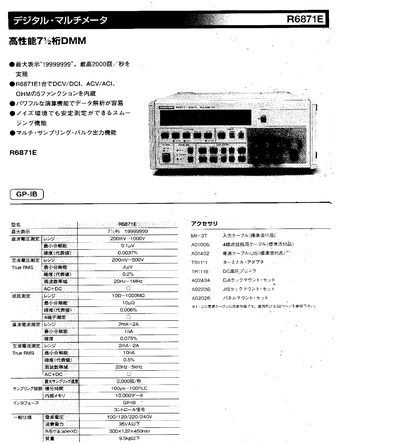

The R6871E is a high‑performance digital multimeter offering 7‑digit display, fast sampling and robust GP‑IB interface. It provides DC voltage, AC voltage, resistance and current measurement functions with true‑RMS capability and low‑noise smoothing.
The device includes a range of accessories such as 4‑wire resistance cables, terminal adapters and rack‑mount kits. It operates under 35 VA power consumption, weighs under 9.5 kg and measures 800 × 132 × 450 mm. This manual is written in Japanese.
| Maximum display value | 19999999 |
|---|---|
| DC voltage range | 200 mV – 1000 V |
| AC current range | 2 mA – 2 A |
| Resistance resolution | 0.0037 % |
| Sampling rate | 2000 samples/s |
| Power consumption | < 35 VA |
| Dimensions (W×H×D) | 800 × 132 × 450 mm |
| Weight | < 9.5 kg |
The multimeter can display up to 19999999.
The device consumes less than 35 VA.
Its size is 800 × 132 × 450 mm.
