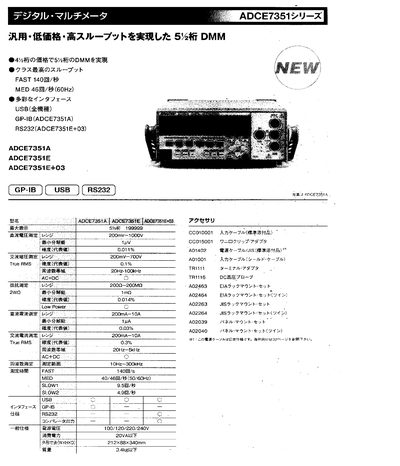

The ADCE7351 series is a low‑cost, high‑throughput digital multimeter offering up to 52‑digit resolution and fast acquisition speeds. It supports FAST (140 readings/s), MED (46 readings/s at 60 Hz) and slower modes for detailed analysis.
The instrument is available with several interface options: USB on all models, GP‑IB on the ADCE7351A, and RS‑232 on the ADCE7351E+03. Various accessories such as rack‑mount kits and probe adapters are listed, and the unit complies with Japanese power specifications. This manual is written in Japanese.
| Display resolution | 52 digits |
|---|---|
| Fast measurement rate | 140 readings/s |
| Medium measurement rate | 46 readings/s (60 Hz) |
| USB interface | All models |
| GP‑IB interface | ADCE7351A |
| RS‑232 interface | ADCE7351E+03 |
| Maximum display digits | 512 digits |
| Frequency measurement range | 20 Hz‑100 kHz |
| AC current measurement range | 200 mA‑10 A |
| Power consumption | <20 VA |
| Dimensions (W×H×D) | 212 mm × 88 mm × 340 mm |
The ADCE7351A model provides USB and GP‑IB interfaces.
The unit measures 212 mm wide, 88 mm high, and 340 mm deep.
