16CH MUX DVR User Manual

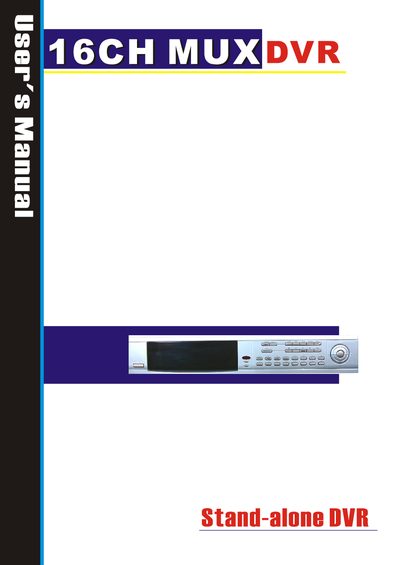

16CH MUX DVR User Manual - cover page
Brand
16CH
Category
Digital Video Recorder
Document type
User Manual
Language
English
Pages
37
File format
PDF
File size
36.7 MB
Published
20 March, 2012
Updated
16 April, 2012
MD5 checksum
6566A84DFAE1C230CE8960C74EF78FFE
PDF
16CH MUX DVR User Manual PDF

About this manual

This manual covers the basic installation and configuration of the 16CH MUX DVR, including power connections, alarm input wiring, and network setup. It details the available communication interfaces such as RS‑485, RS‑232, and Ethernet, and explains how to configure PTZ commands and video standards.

Additional sections describe the HDD bay specifications, supported video formats (NTSC/PAL), and system settings like baud rate and focus commands. The document also provides troubleshooting tips and a quick reference for alarm pin assignments.

What's inside

  • Introduction
  • Alarm Input Connections
  • RS‑485 / RS‑232 Interface
  • Ethernet Connection
  • PTZ Command Setup
  • HDD Bay Configuration
  • Video Standards (NTSC/PAL)
  • System Settings

Specifications

Number of Channels16
Alarm Inputs16 (pins 1‑16)
Communication InterfacesRS‑485, RS‑232, Ethernet
Supported Video StandardsNTSC, PAL
HDD Bay CapacityUp to 60 GB per bay

Frequently asked questions

How many alarm inputs does the 16CH MUX DVR support?

It supports 16 alarm inputs, labeled Pin 1 through Pin 16.

Which communication interfaces are available on the device?

The DVR provides RS‑485, RS‑232, and Ethernet ports for communication.

What video standards can the DVR record?

It can record in both NTSC and PAL formats.

What is the maximum HDD capacity per bay?

Each HDD bay can hold up to 60 GB of storage.
