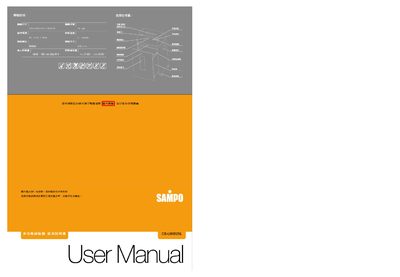

This manual explains how to operate the Sampo CB-U8082SL multi‑function shredder. It covers power connection, start‑up, paper feeding, and the use of manual reverse‑feed and stop buttons. Safety features such as an automatic shutdown at 100 °C and a transparent waste‑bin window are described.
Maintenance tips include cleaning the machine with a soft, damp cloth, avoiding solvents, and regular inspection of the cutting blades. The document also lists common faults, troubleshooting steps, and after‑sales service contact information. This manual is written in Chinese.
| Shredding speed | 2.1 m/min |
|---|---|
| Maximum shredded paper size | 2 × 8 mm |
| Maximum sheets per feed | 8 sheets |
| Paper waste bin capacity | 15 L |
| CD waste bin capacity | 3.2 L |
| Maximum continuous shredding time (paper) | 2 min |
| Maximum continuous shredding time (CD) | 1 min |
| Over‑heat protection temperature | 100 °C |
Plug the power cord into the outlet, press the power button, and the indicator light will turn on, indicating the machine is ready.
Press the “manual reverse feed” button on the control panel to eject the excess paper, or reduce the amount of paper and feed again.
When the internal temperature reaches 100 °C, the machine stops automatically and resumes operation after it cools down.
Disconnect the power, wipe the exterior with a soft cloth dampened with mild detergent, and avoid using gasoline, alcohol or other organic solvents.
