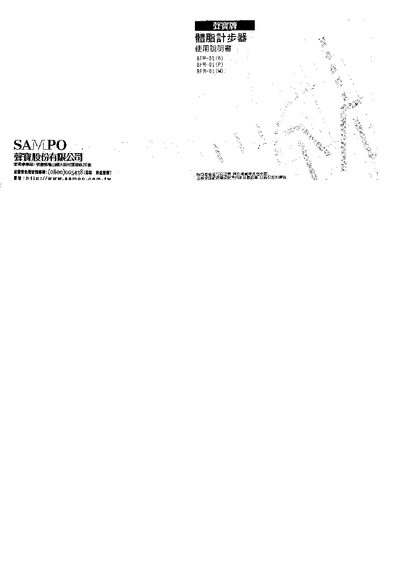

This manual provides detailed instructions for using the Sampo BFM-01 body fat pedometer, including how to input personal data, measure walking steps, and obtain body‑fat and calorie‑burn readings. It also covers proper wearing, battery replacement, and safety precautions.
The document lists the device’s technical specifications such as counting range, accuracy, display size, operating temperature, and battery type, helping users understand the product’s capabilities and limits. This manual is written in Chinese.
| Counting range | 0-99999 (resets after 99999) |
|---|---|
| Counting unit | 1 step |
| Display size | 72.0 × 42.0 mm |
| Accuracy | ±10 % within |
| Body‑fat rate range | 5.5 % – 60 % (step 0.1 %) |
| Measurement temperature range | 10 °C – 30 °C |
| Body‑fat burn amount range | 0.1 KC – 9999.9 KC |
| Battery type | CR2032 (1 piece) |
| Battery life | ≈1 year (2 measurements per day) |
| Operating temperature range | 0 °C – 40 °C |
Open the battery cover at the back, remove the old CR2032 cell, insert a new one with the positive side up, then close the cover.
When the battery voltage is low, the lower‑left corner of the display shows a flashing “LO”, indicating that the battery should be replaced.
