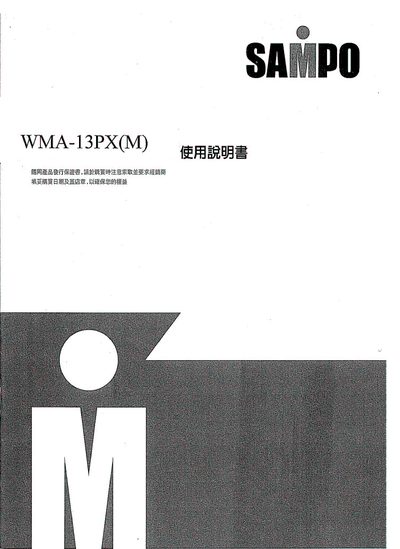

This user manual describes the parts and functions of the Sampo WMA-13PX(M) washing machine, including the control panel, water inlet, drain pipe, and safety features. It also gives step‑by‑step guidance for installing the machine on a level floor and connecting water and power supplies.
Operational instructions cover selecting wash programs, using the ultrasonic and turbo wash functions, setting water level and reservation timers, and interpreting error codes. Maintenance tips such as drain‑pipe replacement, cleaning, and when to contact authorized service are also included. This manual is written in Japanese.
| Power Supply | 110 V / 60 Hz |
|---|---|
| Power Consumption | 750 W |
| Water Pressure | 0.03‑0.8 MPa |
| Washing Method | 渦推式 (turbine‑type) |
| Weight | 55 kg |
| Standard Water Usage | 285 L per cycle |
| Dimensions (W×D×H) | 642 mm × 657 mm × 1012 mm |
| Maximum Load | 13 kg |
| Inlet Water Temperature | 5 °C – 35 °C |
