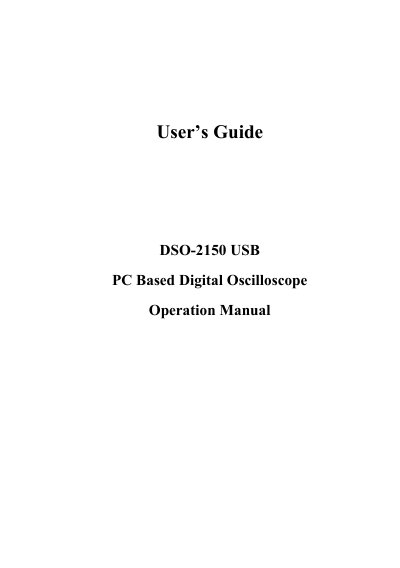

This manual introduces the use of DSO-2150 USB PC Based Digital Oscilloscope.
This manual covers safe operation of the DSO-2150 USB digital oscilloscope, including warranty information, handling precautions, and recommended storage conditions. It explains the power source (bus‑powered via USB) and outlines the environmental limits for temperature and humidity.
Detailed hardware specifications are listed, such as a 60 MHz analog bandwidth, 150 MS/s real‑time sampling, 8‑bit vertical resolution, and USB‑based data transfer. Installation procedures for the Windows driver and software are provided, along with probe calibration steps to ensure accurate measurements.
| Analog bandwidth | 60 MHz |
|---|---|
| Real‑time sampling rate (single channel) | 150 MS/s |
| Vertical resolution | 8 bits/channel |
| Input impedance | 1 MΩ DC |
| Input protection voltage | 35 Vpk |
| Dimensions (W×H×D) | 187 mm × 100 mm × 33 mm |
| Power source | Bus‑powered from USB (no external supply) |
The oscilloscope is bus‑powered from the USB connection and does not need an external power supply.
Store the unit at a temperature of 25 °C with 50 % relative humidity.
The input protection limits the voltage to 35 V peak, and higher voltages must be attenuated with a suitable probe.
The probe should be compensated each time it is connected for the first use and periodically, about every 5‑6 months.
