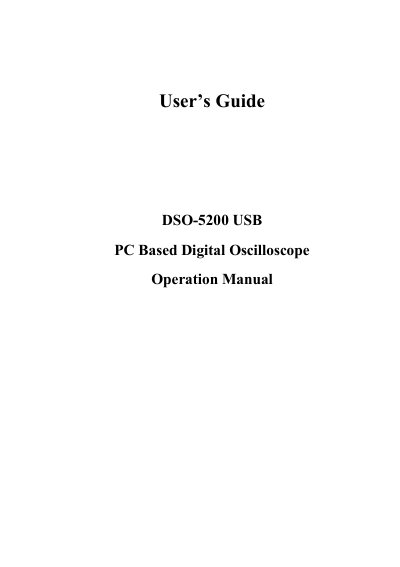

This document is the User's Guide for the DSO-5200 USB PC Based Digital Oscilloscope. It provides information on the product warranty, including coverage, repair/replacement services, and return/exchange policy.
This guide explains how to set up and operate the Dingyang DSO-5200 USB portable digital oscilloscope. It covers safety and handling precautions, installation of the software, and calibration of probes.
Key sections include the product warranty, recommended operating environment, hardware specifications, data format options, and step‑by‑step software installation. The manual also details maintenance, storage, and troubleshooting advice for reliable use.
| Real‑time sampling rate (single channel) | 200 MS/s |
|---|---|
| Analog bandwidth | 200 MHz |
| Number of channels | 2 |
| Vertical resolution | 9 bits per channel |
| Input impedance | 1 MΩ |
| Power source | USB‑bus powered, no external supply |
The product warranty covers a period of one year from the date of purchase.
Windows 98/ME/2000/XP/VISTA, 128 Mbyte memory, DirectX‑supported graphics, 800×600 resolution, 16‑bit color depth.
It is powered via the USB2.0 connection and does not require an external power source.
