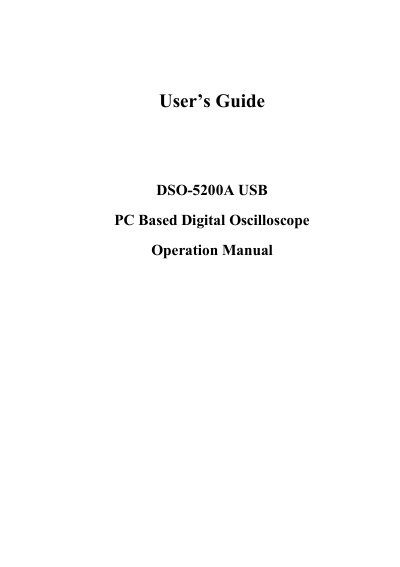

This document is the operation manual for DSO-5200A USB PC Based Digital Oscilloscope. It covers the warranty period, faulty parts repair/replacement, and return policy of the product.
This manual describes the DSO-5200A USB PC‑based digital oscilloscope, a portable, bus‑powered instrument with 200 MHz bandwidth and up to 250 MS/s real‑time sampling. It covers setup, basic operation, and the software installation process required to run the device on a Windows PC.
The guide also includes safety and handling precautions, warranty terms, maintenance and storage recommendations, detailed hardware specifications, and procedures for probe calibration and compensation.
| Analog bandwidth | 200 MHz |
|---|---|
| Real‑time sampling rate (single channel) | 250 MS/s |
| Real‑time sampling rate (dual channel) | 125 MS/s |
| Number of channels | 2 |
| Vertical resolution | 9 bits per channel |
| Input protection voltage | 35 Vpk |
| Timebase range | 2 ns/div to 1 h/div |
| Buffer size | 10 K to 1 M samples |
| Physical dimensions | 187 × 100 × 33 mm |
The product’s warranty covers a period of one year from the date of purchase.
The oscilloscope is bus‑powered from the USB connection and does not require an external power source.
Store the device at about 25 °C with 50 % relative humidity.
