DDS-3005 USB arbitrary waveform generator is a high-precision, high-resolution, multi-functional arbitrary waveform generator. It has a built-in rich waveform and users can edit the waveform arbitrarily by mouse, and also choose regular waveforms, such as sine wave, square wave, triangle wave, sawtooth wave, TTL, white noise, Gauss noise, trapezoidal wave, exponential wave, AM wave and FM wave. Users can also set the waveform parameters, such as amplitude, frequency and phase.
The DDS-3005 USB is a single‑channel arbitrary waveform generator offering 8‑bit output, selectable waveforms, and counter/frequency measurement inputs. It uses DDS technology for high frequency accuracy and resolution, and its data format is compatible with Tektronix CSV files.

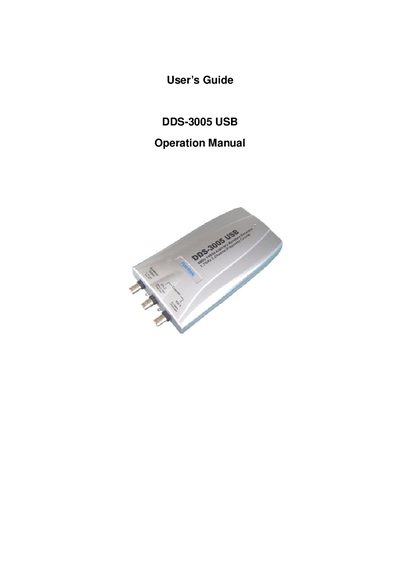

The manual covers hardware specifications, system requirements, installation steps, software installation, waveform editing, and detailed pin definitions. It also includes information on output characteristics, frequency counter ranges, and environmental limits.
| Frequency Range | 0.1 Hz (DC) – 5 MHz |
|---|---|
| Resolution | 0.01 Hz |
| DAG Clock | 0 – 50 MHz, step 0.2 Hz |
| Channels | 1 CH waveform output |
| Memory Depth | 256 KSa |
| Vertical Resolution | 14 Bits |
| Amplitude | +10 V max |
| Output Impedance | 50 Ω |
| Output Current | 50 mA (Vpeak = 100 mA) |
| Working Temperature | 0 °C – 70 °C |
The minimum requirements are Windows 98/2000/XP, 128 MB RAM, a DirectX‑compatible graphics card, and a screen resolution of 1024×768 with 16‑bit color depth.
Waveform data files are saved in ".CSV" format, which is compatible with the CSV files produced by Tektronix ARBExpress software.
The device can output a maximum amplitude of +10 V.
