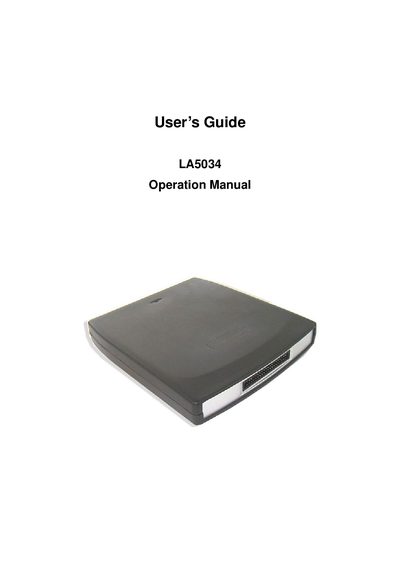

LA5034 is a USB user manual that provides an operation guide for LA5034, including safety precautions, system requirements, hardware and software installation, user interface, menu, advanced features, trigger setup, plugin management, etc.
The LA5034 is a 500 MHz, 34‑channel USB logic analyzer designed for test, diagnostics, and analysis of digital signals. This manual covers general safety, system requirements, hardware and software installation, and detailed descriptions of the user interface and advanced features.
It also includes specifications, channel wiring tables, a block diagram, and cleaning and maintenance recommendations to help users keep the instrument in optimal condition.
| Sampling Frequency | 500 MHz |
|---|---|
| Number of Channels | 34 |
| Interface | USB 2.0 |
| Supported Operating Systems | Windows Me/NT/2000/XP/Vista |
| Screen Resolution Requirement | 1024 × 768 |
The LA5034 can sample signals up to 500 MHz.
It provides 34 input channels.
