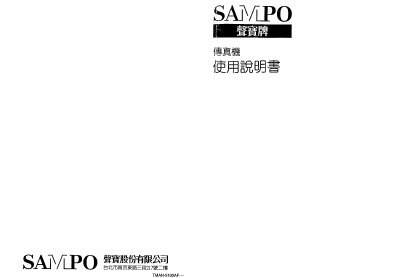

This manual provides instructions for installing, operating, and maintaining the Sampo TMAN-5100AF fax machine. It includes safety precautions, control panel functions, and detailed specifications such as paper sizes, power requirements, and resolution.
The guide also describes troubleshooting steps, cleaning procedures for the print head, and how to configure features like automatic redial and extended reception modes. This manual is written in Chinese.
| Maximum paper length | 1000 mm |
|---|---|
| Minimum paper size | 148 mm × 75 mm |
| Paper capacity | 40 sheets |
| Power supply | 110 V 50 Hz |
| Power consumption | 5 W |
| Resolution | 385 lines/mm |
Open the cover, use a soft cloth or a cloth lightly dampened with alcohol to gently wipe the print head, then close the cover.
Select the automatic redial option in the function key menu (see section 35.1) and configure the number of redial attempts as needed.
It operates on 110 V AC at 50 Hz and consumes approximately 5 W of power.
