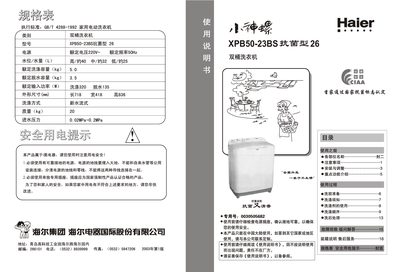

This manual explains how to safely install, adjust, and operate the Haier XPB50-23BS double‑drum washing machine. It covers power‑safety requirements, water‑inlet pressure, and proper connection of the power plug and drainage pipe.
The guide also details washing cycles, detergent use, filter cleaning, and troubleshooting procedures, helping users maintain optimal performance and avoid common faults. This manual is written in Chinese.
| Rated voltage | 220 V~ |
|---|---|
| Rated frequency | 50 Hz |
| Rated wash capacity | 5.0 kg |
| Rated spin capacity | 3.5 kg |
| Wash power consumption | 320 W |
| Dimensions (L×W×H) | 718 mm × 418 mm × 836 mm |
| Net weight | 20 kg |
| Inlet water pressure | 0.02 MPa – 0.2 MPa |
Make sure the power plug is properly inserted and the outlet is correctly grounded.
After each use, fully drain the water and keep the pipe tilted so water does not remain inside.
Remove the filter frame, rinse it with tap water, and reinstall it according to the illustrated steps.
The drain pipe should be less than 10 cm high to ensure smooth drainage.
