GE Fanuc QuickPanel View/Control User Manual

This manual contains hardware information of 6” QuickPanel View/Control, and users can learn about the product features and characteristics.

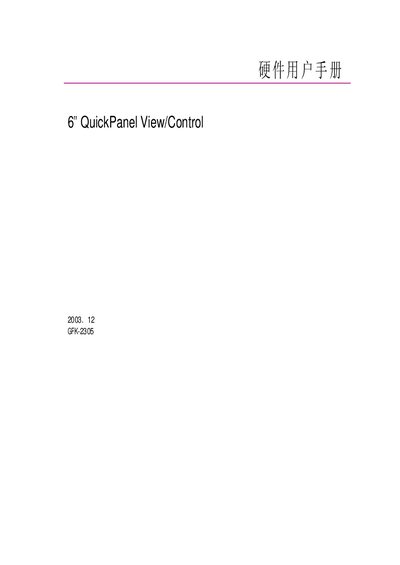

GE Fanuc QuickPanel View/Control User Manual - cover page
Brand
6î
Category
Other device
Document type
User Manual
Language
Chinese
Pages
74
File format
PDF
File size
1.4 MB
Published
19 March, 2012
Updated
01 October, 2023
MD5 checksum
A2DF731506E6F4D5464DB051C27FBDFB
PDF
GE Fanuc QuickPanel View/Control User Manual PDF

About this manual

The QuickPanel View/Control is a compact industrial HMI and controller that runs Windows CE.NET. It offers a touchscreen, optional external keyboards and mice, and a variety of communication ports for integration into factory networks.

The manual covers hardware installation, power connection, configuration of COM, USB and Ethernet ports, memory options, backup procedures, and system information, providing step‑by‑step guidance for safe and reliable operation. This manual is written in Chinese.

What's inside

  • Welcome
  • Basic Setup
  • Hardware Overview
  • Layout Diagram
  • Structure Diagram
  • Software Overview
  • Windows CE.NET
  • Pocket Web Browser
  • Backup
  • Communication Ports

Specifications

Power Supply24 VDC, 24 W
DRAM32 MB
Flash Memory32 MB or 64 MB
SRAM12 KB
Operating SystemWindows CE.NET

Frequently asked questions

What voltage is required for the power supply?

The QuickPanel View/Control requires a 24 VDC, 24 W power adapter.

How much DRAM is installed in the QuickPanel?

It contains 32 MB of dynamic RAM (DRAM).

Which operating system does the QuickPanel use?

The device runs the Windows CE.NET embedded operating system.

Download PDF (1.4 MB)
