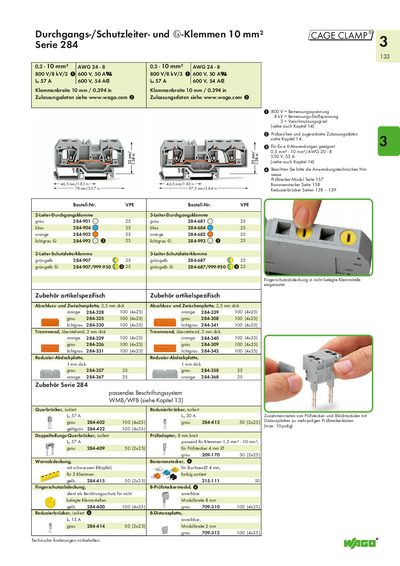

This document provides detailed information about Wago 284 series products, including product models, specifications, technical parameters, etc.
The Series 284 terminal blocks are designed for conductor cross‑sections of 10 mm² (0.394 in) and support voltage ratings of 800 V (up to 8 kV) with a current rating of 50 A. They feature a clamp width of 10 mm and are suitable for applications requiring 0.5 mm² – 10 mm² (AWG 20‑8) conductors.
A range of accessories and part numbers are listed, including various clamp types, bridge connectors, and protective covers. Approval data and further product information can be found on the Wago website (www.wago.com). This manual is written in German.
| Rated voltage | 800 V / 8 kV |
|---|---|
| Clamp width | 10 mm (0.394 in) |
| Conductor size range | 0.5 mm² – 10 mm² / AWG 20‑8 |
The rated voltage is 800 V (up to 8 kV).
The clamp width is 10 mm (0.394 in).
Approval data is available at www.wago.com.
