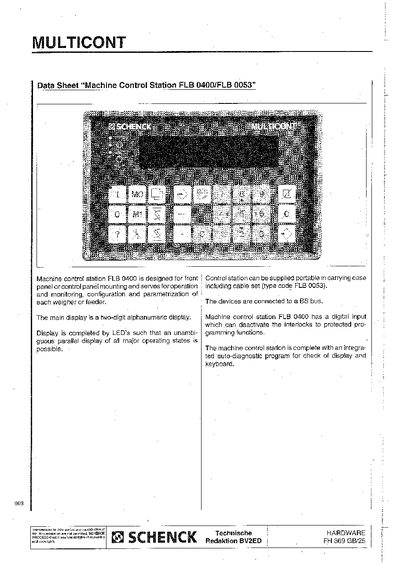

The Machine Control Station FLB 0400/FLB 0053 is designed for front‑panel or control‑panel mounting and is used for operation, monitoring, configuration and parametrisation of each weigher or feeder. It features a two‑digit alphanumeric display complemented by LEDs for clear status indication and includes an integrated auto‑diagnostic program for display and keyboard checks.
Key technical data include dimensions of 192 × 120 × 70 mm, a power supply range of 19‑36 VDC with a consumption of about 3.5 VA, IP65 protection on the front, RS‑485 galvanically isolated bus interface, and a maximum BS‑bus cable length of 1000 m. The unit also offers a digital interlock input, a fluorescent 2 × 20‑digit display with 5 mm character height, and flexible membrane keys with tactile feedback.
| Dimensions (W × H × D) | 192 × 120 × 70 mm |
|---|---|
| Control panel cut‑out | 186.5 × 114.5 mm |
| Minimum spacing on installation | 24 mm |
| Front IP protection | IP65 |
| Rear IP protection | IP42 |
| Power supply voltage | 19 to 36 VDC |
| Power consumption | Approx. 3.5 VA |
| Ambient temperature range | -20 °C to +55 °C |
| Storage temperature range | -40 °C to +85 °C |
| Display type | Fluorescent, 2 × 20‑digit |
| Character height | ≈ 5 mm |
| Keyboard | Flexible membrane keys with mechanical tactile touch |
| Bus interface | BS bus input/output, RS‑485 galvanically isolated plus power supply |
| Maximum cable length | 1000 m |
| Interlock input | 1 digital input, 24 V/5 mA potential‑free contact |
The unit measures 192 × 120 × 70 mm (width × height × depth).
It operates from a 19 to 36 VDC power supply.
The front panel is protected to IP65.
The BS‑bus cable can be up to 1000 m long.
