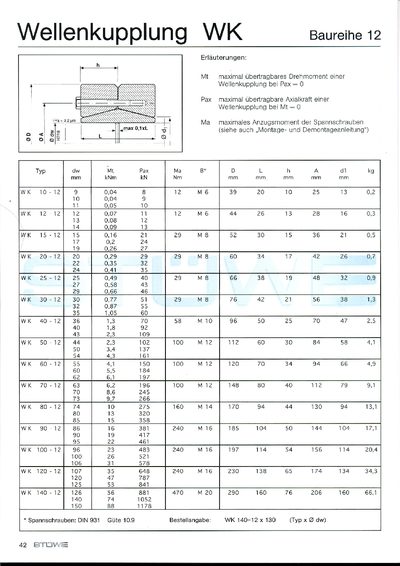

This datasheet provides the technical specifications for the Stuewe‑WK WK series shaft couplings. It includes maximum transmissible torque, axial load capacity, tightening torque for mounting screws and other key dimensions for each model size.
The table covers models from WK 10‑12 up to WK 140‑12, showing values such as torque (Mt), axial force (Pax) and mounting screw torque (Ma). Additional notes reference the assembly and disassembly guide for proper installation. This manual is written in German.
| Maximum torque (Mt) for WK 10‑12 | 0.04 kNm |
|---|---|
| Maximum axial force (Pax) for WK 10‑12 | 0.04 kN |
| Maximum torque (Mt) for WK 140‑12 | 56 kNm |
| Maximum axial force (Pax) for WK 140‑12 | 881 kN |
| Mounting screw tightening torque (Ma) for WK 140‑12 | 470 Nm |
| Recommended mounting screw | DIN 931, grade 10.9 |
The WK 10‑12 coupling can transmit up to 0.04 kNm of torque.
The recommended mounting screw is DIN 931, grade 10.9.
See the "Montage- und Demontageanleitung" referenced in the document.
