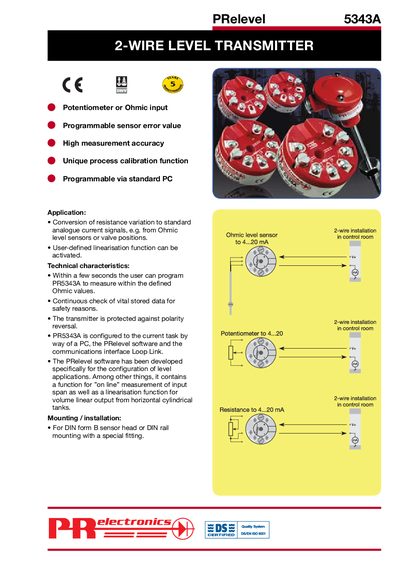

PRelevel 5343A 2-wire level transmitter converts resistance variations to standard analog current signals, e.g. from Ohmic level sensors or valve positions. User-defined linearization function can be activated.
The PRelevel 5343A is a 2‑wire level transmitter that converts resistance variations from potentiometer or ohmic sensors into standard analogue current signals. It offers programmable sensor error values, high measurement accuracy, and a unique process calibration function that can be set up via a PC using the PRelevel software and Loop Link interface.
Key specifications include a supply voltage of 8 VDC, operating temperature range from –40 °C to +85 °C, dimensions of 44 × 20.2 mm, weight of 50 g, and an IP68 enclosure rating. The device supports DIN form B sensor head or DIN‑rail mounting with a special fitting and provides a 4‑20 mA output with a minimum signal‑to‑noise ratio of 60 dB.
| Power consumption | 25 mW to 0.8 W |
|---|---|
| Operating temperature range | -40°C to +85°C |
| Dimensions | 44 x 20.2 mm |
| Weight | 50 g |
| IP rating | IP68 / IPOO |
| Signal/Noise ratio | Min. 60 dB |
It supports a potentiometer or ohmic input.
It can be mounted on a DIN form B sensor head or DIN rail with a special fitting.
The device operates from –40 °C to +85 °C.
