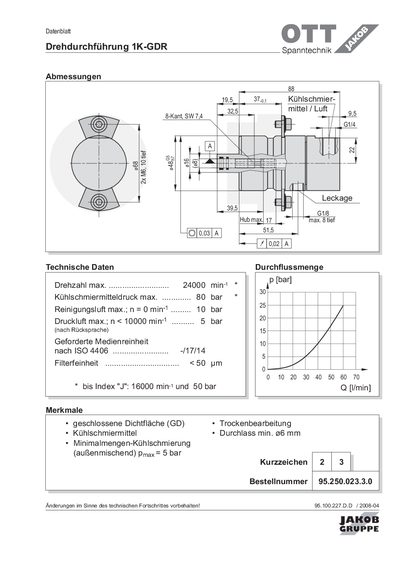

Detailed parameters of rotary tube 1K-GDR
The OTT 1K-GDR Drehdurchführung is presented with its main dimensions (88 × 19.5 × 37.94 mm) and a range of operating parameters. It supports a maximum rotational speed of 24 000 min⁻¹ and can handle oil pressure up to 80 bar.
Additional specifications include cleaning‑air pressure up to 10 bar, compressed‑air pressure up to 5 bar, a flow capacity of up to 16 000 l/min at 50 bar, and a filter fineness of less than 50 µm. The required media purity is rated at 10, and the part number is 95.250.023.3.0. This manual is written in German.
| Dimensions (mm) | 88 × 19.5 × 37.94 |
|---|---|
| Max oil pressure | 80 bar |
| Max cleaning‑air pressure | 10 bar |
| Max compressed‑air pressure | 5 bar |
| Max flow rate | 16000 l/min at 50 bar |
| Filter fineness | <50 µm |
| Required media purity | 10 |
| Order number | 95.250.023.3.0 |
It is rated for oil pressure up to 80 bar.
The filter fineness is less than 50 µm.
