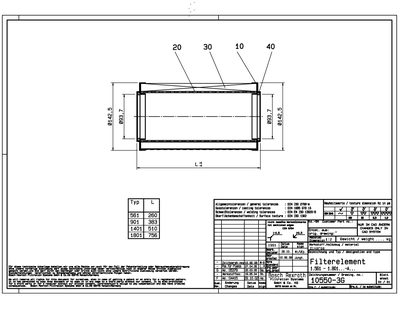

This datasheet provides the technical specifications for the Filtration Systems Typ L filter element. It lists the applicable German and international standards for general, casting and welding tolerances, as well as surface texture requirements.
The document also includes dimensional data, drawing numbers and material information required for engineering and procurement purposes. This manual is written in German.
| General tolerances | DIN 27e6-a |
|---|---|
| Casting tolerances | DIN 4685 6TH 16 |
| Welding tolerances | DIN EN 190 13920-8 |
| Surface texture | DIN 1302 |
The general tolerances follow DIN 27e6-a.
Surface texture is specified by DIN 1302.
