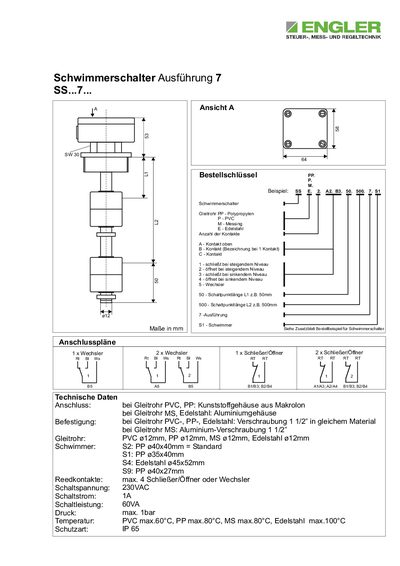

This is a PDF file that mainly introduces the technical parameters, connection methods, installation methods, and external dimensions of the SS.7 series swimming switches.
The Engler SS 7 float switch is offered in several material versions (PVC, PP, MS, stainless steel) with interchangeable float bodies and contact configurations. It can be mounted by 1½" screw fittings matching the tube material, and the housing varies between Makrolon plastic and aluminum depending on the tube type.
Electrical specifications include a 230 VAC switching voltage, 1 A switching current, 60 VA switching power, and a maximum pressure rating of 1 bar. Temperature limits differ by material (PVC 60 °C, PP 80 °C, MS 80 °C, stainless steel 100 °C) and the device is protected to IP65. This manual is written in German.
| Schaltspannung | 230VAC |
|---|---|
| Schaltstrom | 1A |
| Schaltleistung | 60VA |
| Druck | max. 1 bar |
| Temperatur | PVC max.60°C, PP max.80°C, MS max.80°C, Edelstahl max.100°C |
| Schutzart | IP65 |
The maximum switching voltage is 230 VAC.
It is protected to IP65.
The switch can handle up to 1 bar pressure.
The PVC version can operate up to 60 °C.
