This document is a product catalog for Fischer's silicone seals. It includes 9-pin, 15-pin, 25-pin, 37-pin, and 50-pin products. The product thickness is 0.8mm and the color is black.

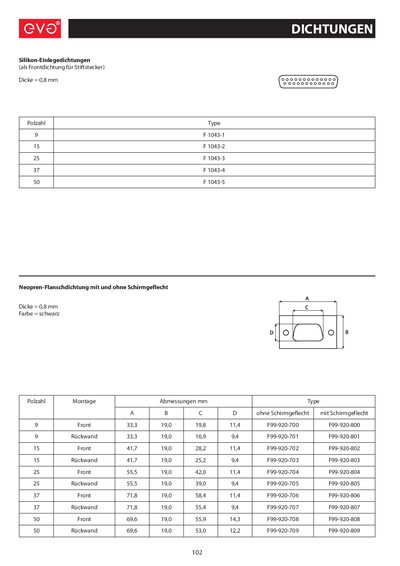

The document provides specifications for silicone insert gaskets (Silikon‑Einlegedichtungen) used as front seals for pin connectors, detailing thickness and available pole counts. It also lists neoprene flange gaskets with and without shield mesh, describing their thickness and color.
A detailed table gives mounting dimensions for each pole count (9, 15, 25, 37, 50) and distinguishes between front and rear‑wall applications, with part numbers for versions with and without shield mesh. This manual is written in German.
| Silicone gasket thickness | 0.8 mm |
|---|---|
| Neoprene gasket thickness | 0.8 mm |
| Neoprene gasket color | black |
| Pole count 9 front mounting dimensions (A‑D) | 33.3 mm × 19.0 mm × 19.8 mm × 114 mm |
| Pole count 50 rear‑wall mounting dimensions (A‑D) | 69.6 mm × 19.0 mm × 53.0 mm × 12.2 mm |
The silicone insert gaskets have a thickness of 0.8 mm.
The neoprene flange gaskets are black.
The 15‑pole front gasket measures 41.7 mm × 19.0 mm × 28.2 mm × 114 mm.
Yes, each gasket type lists separate part numbers for versions with and without shield mesh.
