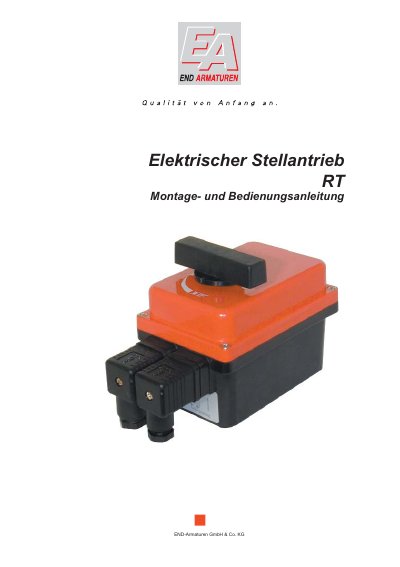

This document is a installation and operation manual for the electric actuator RT. It provides detailed instructions for the installation, commissioning, and maintenance of the product.
This manual explains how to install, wire, and operate the END-Armaturen RT electric actuator. It covers safety precautions, mechanical mounting, electrical connection, and adjustment procedures for reliable use in industrial applications.
Key sections include safety guidelines, device description, environmental requirements, detailed mounting and demounting instructions, commissioning steps, troubleshooting, and technical data such as dimensions and wiring diagrams. This manual is written in German.
| Octagon size (RT20) | 14 mm |
|---|---|
| Octagon size (RT35) | 24 mm |
| Power supply options | 115 V/230 V AC or 24 V AC |
The actuator can be powered from either a 115 V/230 V AC supply or a 24 V AC supply as shown in the wiring diagram.
The RT20 version has an octagonal mounting plate with a size of 14 mm.
Yes, the RT actuator is equipped with a hand lever that allows manual positioning when power is lost.
