This document introduces the features of the D Barksdale 26 type mechanical single/dual pressure switch, including repeatability, application range, protection class, electrical connection, weight, etc.

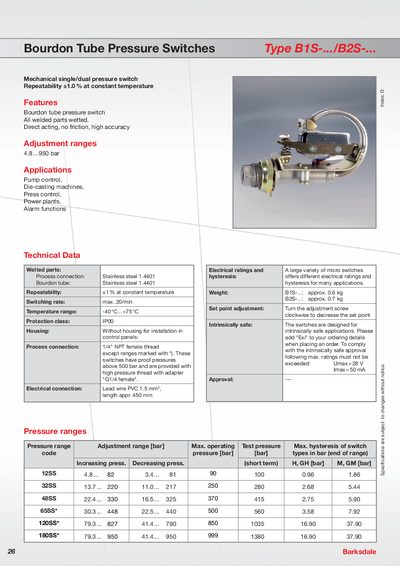

The Barksdale B1S-.../B2S-.. pressure switches are direct‑acting Bourdon tube devices with welded stainless‑steel parts. They offer high accuracy, a wide adjustment range and intrinsic safety features for demanding industrial applications such as pump control, die‑casting machines and power plants.
Key specifications include an adjustment range of 4.8 … 950 bar, repeatability of ±1 % at constant temperature, a switching rate up to 20 per minute, and operation from –40 °C to +75 °C. The switches are IPoO protected, weigh approximately 0.6 kg (B1S) or 0.7 kg (B2S), and use a 1/4" NPT female process connection.
| Adjustment range | 4.8 … 950 bar |
|---|---|
| Repeatability | +1 % at constant temperature |
| Switching rate | max. 20 /min |
| Temperature range | -40 °C … +75 °C |
| Protection class | IPoO |
| Process connection | 1/4" NPT female thread |
| Lead wire | PVC 1.5 mm, approx. 450 mm length |
| Intrinsic safety max ratings | Umax = 28 V, Imax = 50 mA |
The switches can be adjusted from 4.8 bar up to 950 bar.
They are rated for temperatures from –40 °C to +75 °C.
The devices are protected to IPoO.
