This document introduces a sensor unit for detecting a workpiece (electrically conductive).
The document provides technical specifications for the ATR‑KMLLG sensor unit. It specifies that the contact resistance at the contact points must not exceed 4 kΩ, otherwise the workpiece will not be detected.

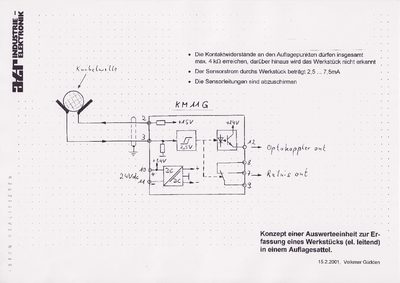

It also details the sensor current range (2.5 mA to 7.5 mA) and states that the sensor leads must be shielded. The text describes a concept for an evaluation unit that records an electrically conductive workpiece in a contact seat. This manual is written in German.
| Maximum contact resistance | 4 kΩ |
|---|
The contact resistance at the contact points may not exceed 4 kΩ.
