NE 1505 - NE 1524 is a 19-inch card-type double power supply module from ATR Industrie - Elektronik GmbH, which supports 5Vdc, 15Vdc or 24Vdc output, with an output current of 1.25.1.5A.

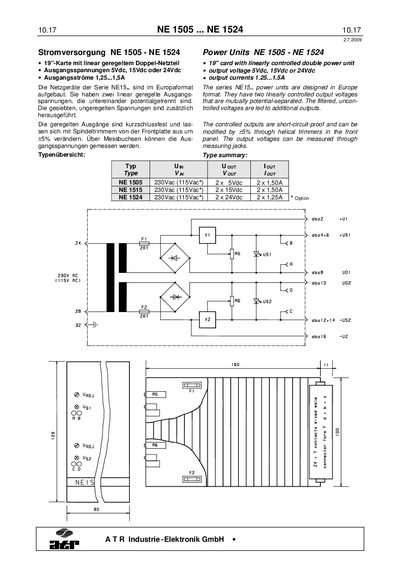

The document provides the technical specifications for the NE 1505, NE 1515 and NE 1524 power units manufactured by ATR Industrie-Elektronik. It lists supply voltage options, output voltages (both regulated and unregulated), current ratings, power consumption and mechanical dimensions.
Both German and English sections describe the same data, including ripple, temperature drift, fuse type, ambient temperature range, front‑panel construction and weight. The units are built in a European 100 × 160 mm format and feature two linearly regulated, potential‑separated outputs. This manual is written in German.
| Supply voltage (Vin) | 230V ±10% / 50‑60 Hz (option 115V ±10%) |
|---|---|
| Maximum output current (NE 1524) | 2 × 1.25 A |
| Dimensions (format) | 100 × 160 mm (European) |
It accepts 230 V AC ±10 % at 50‑60 Hz, with an optional 115 V AC version.
The NE 1524 provides two outputs each rated at 1.25 A.
