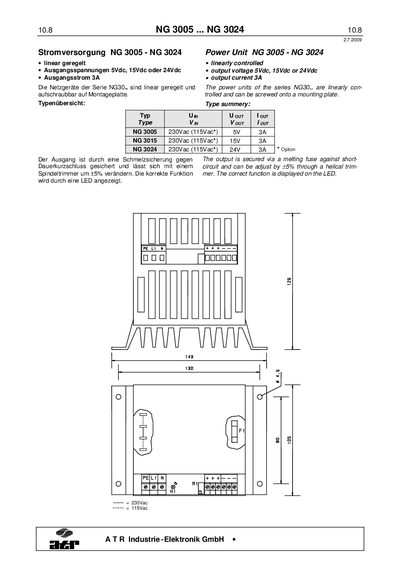

NG 3005 - NG 3024 is a linearly controlled power unit produced by A T R Industrie - Elektronik GmbH. It has three output voltages: 5V, 15V and 24V, and the output current is 3A.
The NG 3005‑NG 3024 series are linear‑regulated power units that can be mounted on a panel with four M4 screws. They provide selectable output voltages of 5 V, 15 V or 24 V at a maximum current of 3 A, and feature a LED indicator for correct operation. The output is protected by a 4 A slow‑blow melting fuse and can be fine‑tuned up to +5 % with a helical trimmer.
Key specifications include a supply voltage of 230 V AC ± 10 % (115 V AC optional), power consumption of 100 VA, ambient temperature range of 0 °C to 50 °C, and a weight of approximately 2 kg. Connections are made via 2.5 mm screw‑type terminals. This manual is written in German.
| Power consumption | 100 VA |
|---|---|
| Maximum output current | 3 A |
| Fuse | 4 A slow‑blow fuse (5 × 20 mm) |
| Ambient temperature range | 0 °C … 50 °C |
| Weight | 2 kg |
| Connections | Screw‑type terminals 2.5 mm |
All models in the NG series provide a maximum output current of 3 A.
The output is secured by a 4 A slow‑blow melting fuse.
Yes, the output voltage can be increased by up to +5 % using a helical trimmer.
