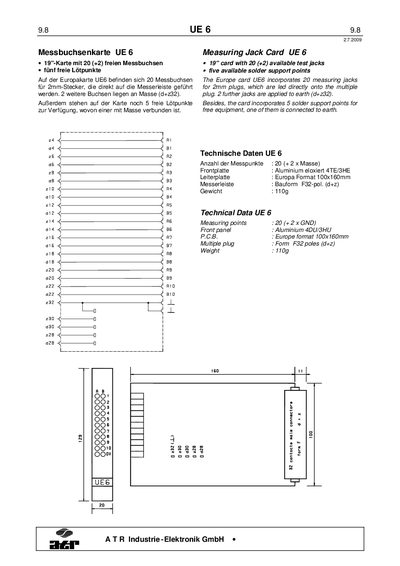

The UE 6 is a measurement module in the A T R Europa Card series. It contains 20 measurement jacks and 5 solder support points. The module can be connected to 2mm plugs and directly connected to the measurement bar. 2 additional jacks are connected to ground.
The UE6 is a 19‑inch measuring jack card designed for 2 mm plugs. It offers 20 measuring jacks, with two additional jacks tied to earth, and includes five free solder support points for optional equipment.
Physically, the card uses an anodized aluminium front panel, a European‑format PCB measuring 100 × 160 mm, and a total weight of 110 g. The connector layout follows the F32‑pole (d+z) standard. This manual is written in German.
| Measuring points | 20 (+2 GND) |
|---|---|
| Front panel material | Anodized aluminium |
| PCB size | 100 × 160 mm (European format) |
| Weight | 110 g |
| Connector type | F32‑pole (d+z) |
| Free solder points | 5 |
The UE6 card provides 20 measuring jacks plus 2 additional jacks connected to earth.
The PCB is a European‑format board measuring 100 mm by 160 mm.
The card weighs approximately 110 grams.
The front panel is made of anodized aluminium.
