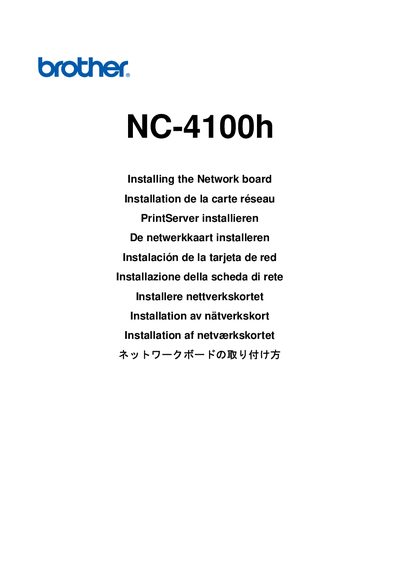

Brother NC-4100h Installation Guide

About this manual

This guide provides the procedures for installing the Network board on a Brother NC-4100h printer. It covers safety steps, removal of the existing PCB access plate, insertion of the board, and re‑assembly of the printer components.

For detailed configuration of the Network board, refer to the Network User's Guide on the CD‑ROM supplied with the printer. The guide also includes instructions for connecting the Ethernet cable and powering the printer back on.

What's inside

• Installing the Network board
• Unpacking the Network board
• Connecting the Network board connector
• Re‑installing the PCB access plate
• Power connection
• Securing the metal plate
• Connecting Ethernet cable
• Final power‑on steps

Frequently asked questions

How do I turn off the printer before installing the network board?

Turn off the printer, unplug the power cord, and disconnect the interface (printer) cable.

How do I secure the network board after inserting it?

Insert the network board connector into the PCB connector, then secure it with the two screws removed in step 4.
