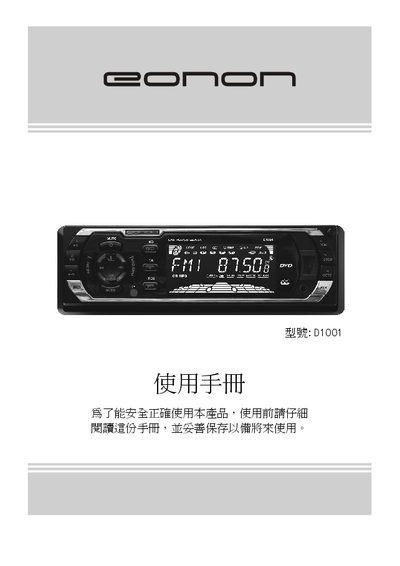

This manual is the user manual of D1001 car DVD/MP3/CD player, which introduces the functions, features, installation, operation and settings of the product.
The D1001 is a car DVD/MP3/CD player with built‑in AM/FM radio, SD/MMC card support and an LCD display. The manual explains safe usage, warns against operating the unit while driving, and describes how to clean and maintain the device.
Installation procedures cover pre‑installation wiring, mounting positions, and securing the unit with the supplied hardware. Operational sections detail basic playback, advanced functions such as RDS, AUX input, and SD/MMC card usage, as well as panel controls and troubleshooting. This manual is written in Japanese.
| Dimensions (W×D×H) | 178 mm × 160 mm × 50 mm |
|---|---|
| Bass boost | +10 dB at 100 Hz |
| Treble boost | +10 dB at 10 kHz |
| Output power | 4 × 65 W |
| Supported disc formats | DVD, VCD, MP3, CD‑JPEG, MPEG‑4 |
| Frequency response | 20 Hz – 20 kHz ±1 dB |
| FM presets | 18 |
| AM presets | 12 |
The unit can store up to 18 FM preset stations.
Yes, the D1001 can play media files from SD/MMC memory cards.
