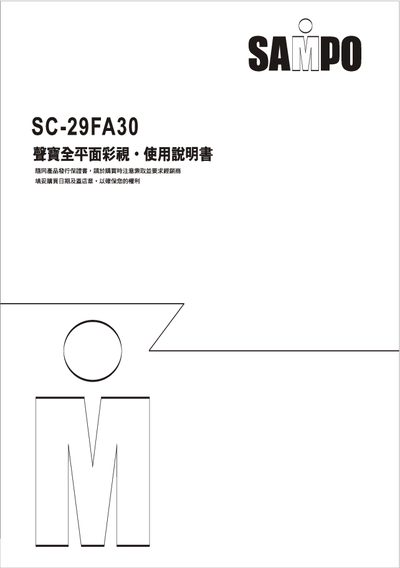

SC-29FA30 User Manual

This document is a manual for a specific product, including installation and usage instructions, as well as technical specifications and precautions.

Brand: Sampo
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 25
File format: PDF
File size: 10.1 MB
Published: 17 March, 2012
Updated: 28 September, 2023
MD5 checksum: 38BC982E5D743485D9563710EAFBCB81
PDF: SC-29FA30 User Manual PDF

About this manual

This manual provides safety information and handling instructions for the SC-29FA30, including a clear warning about the risk of electric shock and a prohibition on opening the unit. It also outlines the required precautions when connecting the device to power sources and AV equipment.

The document lists the supported video and audio signal formats (RCA, YCbCr, YUV) and details the electrical characteristics such as impedance values, voltage and frequency requirements. A calendar page and miscellaneous reference tables are also included.

What's inside

Safety Precautions
AV Connections
Electrical Specifications
Impedance Values
Reference Tables

Specifications

Impedance (Video Input)	300 Ω
Operating Voltage	AC 110 V, 60 Hz

Frequently asked questions

What is the risk if the device is opened?

Opening the device can cause electric shock, so it must not be opened.

What video signal formats are supported?

The device supports RCA, YCbCr, and YUV video signals.
