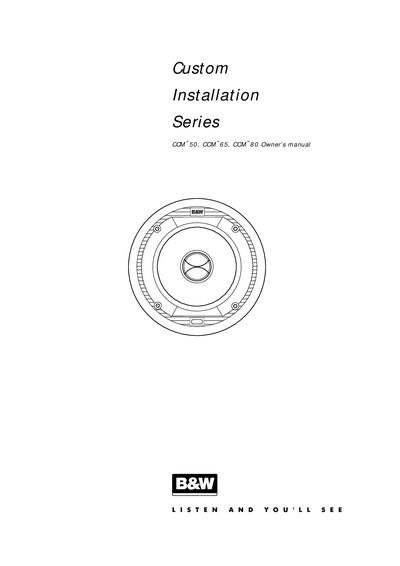

This is the user manual for B&W CCM™50, CCM™65, CCM™80, which contains the features and characteristics of the products, installation instructions, etc.
This manual provides step‑by‑step instructions for unpacking, positioning and installing the B&W Custom Ceiling Mount (CCM™) speakers. It explains how to prepare the wall cavity, fit the mounting frame, and customise the finish to match your décor.
The guide also details the electrical connections, high‑frequency controls and safety warnings, such as keeping the speakers away from equipment sensitive to magnetic fields. Multilingual sections are included, but the core instructions are in English.
| Recommended cavity volume | above 15 L (0.5 cu ft) |
|---|---|
| Static magnetic field safety distance | minimum 0.5 m (20 in) |
| High‑frequency switch function | provides boost or cut |
| Tweeter adjustment (CCM™65/80) | swivels for off‑axis aiming |
Keep the speakers more than 0.5 m (20 in) from the ceiling edges to avoid excessive bass.
Connect the red (+) terminal to the amplifier’s positive terminal and the black (–) terminal to the negative, ensuring correct polarity.
It allows you to boost or cut the speaker’s high‑frequency output to suit room acoustics.
