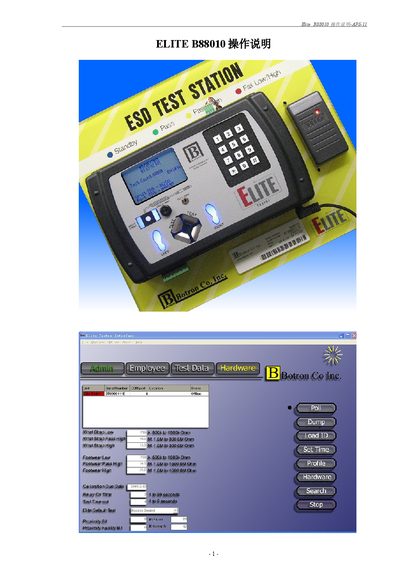

Elite B88010 is a testing instrument that complies with ANSI/ESD S20.20 standard. It is used to test the grounding of personnel through wrist straps and anti-static shoes. The instrument can save test data and output it to a PC. It also has a relay output and can be used to control electronic locks. The instrument can be connected to a PC through a network cable or directly through an RJ11 cable. It comes with a back panel, a tester, a card reader, a foot pedal, a power adapter, a grounding wire, a USB to Serial converter, software, and a user manual.
This manual describes the Elite B88010 tester, covering its hardware layout, interface ports (USB‑to‑Serial, RJ45, RJ11) and basic operation steps. It includes information on power requirements, test count data, and calibration procedures.
Additional sections detail the wrist‑strap sensor configuration, measurement ranges, and safety notes. The document ends with technical specifications and copyright information.
| Input Voltage (DC) | 12VDC |
|---|---|
| Input Voltage (AC) | 100-240VAC |
| Measurement Range (Low) | 500‑1000K |
| Measurement Range (High) | 1‑1300M |
The device can be powered from 12 VDC or from an AC source ranging from 100 V to 240 V.
It uses a USB‑to‑Serial interface for communication with a PC.
The instrument measures from 500 K up to 1 300 M, with intermediate ranges such as 1‑50 M.
